Ubiquiti UniFi Cloud Gateway Max BGP S2S VPN with AWS

Table of Contents

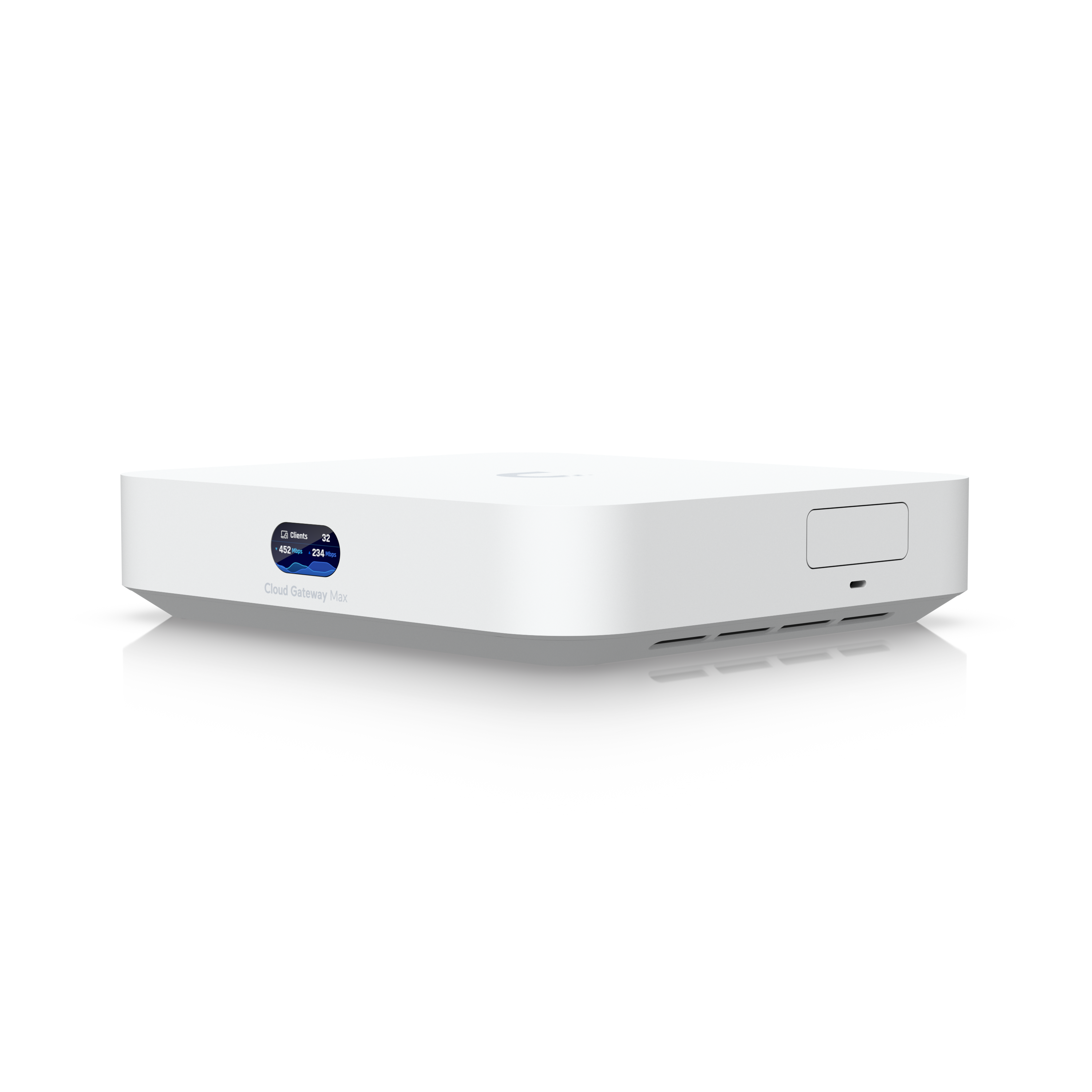

The UniFi Cloud Gateway Max is a high-performance gateway with advanced routing capabilities, supporting BGP for enterprise-grade network connectivity [1].

[1] https://techspecs.ui.com/unifi/cloud-gateways/ucg-max?s=us

Overview #

This guide covers setting up a BGP-enabled site-to-site VPN connection between a Ubiquiti UniFi Cloud Gateway Max and AWS using Transit Gateway, enabling dynamic routing and high availability for hybrid cloud connectivity.

Architecture #

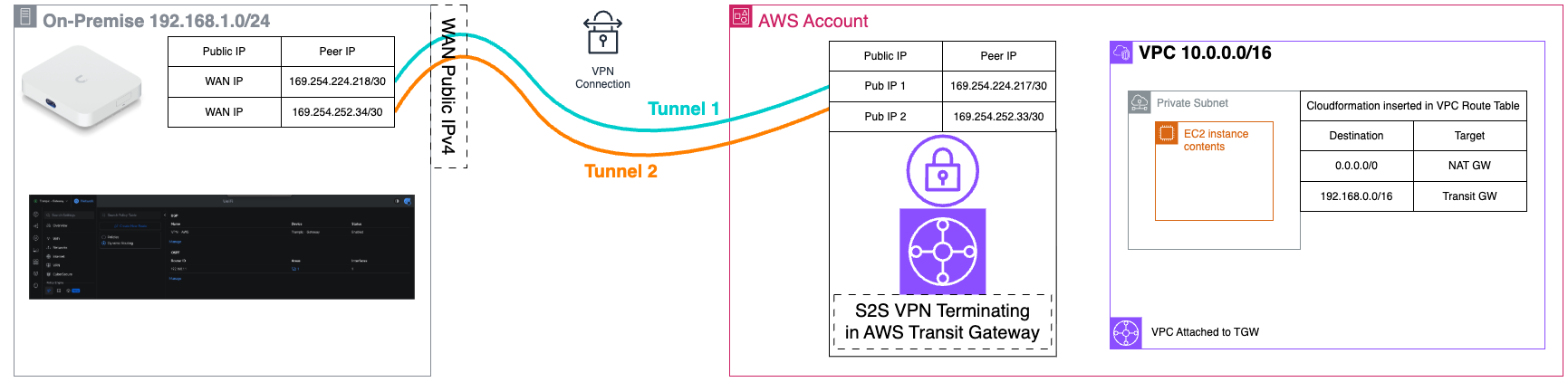

Here’s what we’ll be building - a complete hybrid cloud setup with BGP routing between my home lab and AWS:

⚠️ Important Note: When you download your VPN configuration, AWS will assign unique tunnel IP addresses for your connection. In this guide and screenshots, I’m using:
Tunnel 1: Customer Gateway 169.254.224.218/30, Virtual Private Gateway 169.254.224.217/30
Tunnel 2: Customer Gateway 169.254.252.34/30, Virtual Private Gateway 169.254.252.33/30
Make sure to use the actual tunnel IP addresses from YOUR downloaded configuration file, not the ones shown in my examples.

Prerequisites #

Ubiquiti UniFi Cloud Gateway Max running UniFi OS 4.3.9 (Official)
UniFi Network Application version 9.4.19
AWS account with appropriate permissions for VPC, Transit Gateway, and VPN operations
Basic understanding of BGP and VPN concepts
Public IP address for my UniFi Gateway
Network planning:
- Home lab network: 192.168.1.0/24 (adjust to match your actual range). We assume that Gateway IP is 192.168.1.1
- AWS cloud network: 10.0.0.0/8 (RFC1918 private address space)
- Plan your IP address allocation carefully to avoid conflicts
- Note: AWS also offers IPAM (IP Address Manager) for complex IP space management, but that’s outside the scope of this guide

Step 1: Deploy AWS Infrastructure #

Use this CloudFormation template to create the necessary AWS infrastructure including VPC, Transit Gateway, and Site-to-Site VPN:

AWSTemplateFormatVersion: '2010-09-09'
Description: 'Fixed Transit Gateway with Site-to-Site VPN - proper dependencies'

Parameters:
  VpcCidr:
    Type: String
    Default: '10.0.0.0/16'
    Description: CIDR block for the VPC

  PublicSubnet1Cidr:
    Type: String
    Default: '10.0.1.0/24'
    Description: CIDR block for the first public subnet

  PublicSubnet2Cidr:
    Type: String
    Default: '10.0.2.0/24'
    Description: CIDR block for the second public subnet

  PrivateSubnet1Cidr:
    Type: String
    Default: '10.0.3.0/24'
    Description: CIDR block for the first private subnet

  PrivateSubnet2Cidr:
    Type: String
    Default: '10.0.4.0/24'
    Description: CIDR block for the second private subnet

  OnPremisesCidr:
    Type: String
    Default: '192.168.0.0/16'
    Description: CIDR block for on-premises network

  CustomerGatewayIp:
    Type: String
    Description: Public IP address of my customer gateway

  BgpAsn:
    Type: Number
    Default: 65000
    Description: BGP ASN for customer gateway
    MinValue: 1
    MaxValue: 4294967294

Resources:
  # VPC and Networking
  VPC:
    Type: AWS::EC2::VPC
    Properties:
      CidrBlock: !Ref VpcCidr
      EnableDnsHostnames: true
      EnableDnsSupport: true
      Tags:
        - Key: Name
          Value: TransitGateway-VPC

  InternetGateway:
    Type: AWS::EC2::InternetGateway
    Properties:
      Tags:
        - Key: Name
          Value: TransitGateway-IGW

  AttachGateway:
    Type: AWS::EC2::VPCGatewayAttachment
    Properties:
      VpcId: !Ref VPC
      InternetGatewayId: !Ref InternetGateway

  # Public Subnets
  PublicSubnet1:
    Type: AWS::EC2::Subnet
    Properties:
      VpcId: !Ref VPC
      CidrBlock: !Ref PublicSubnet1Cidr
      AvailabilityZone: !Select [0, !GetAZs '']
      MapPublicIpOnLaunch: true
      Tags:
        - Key: Name
          Value: Public Subnet 1

  PublicSubnet2:
    Type: AWS::EC2::Subnet
    Properties:
      VpcId: !Ref VPC
      CidrBlock: !Ref PublicSubnet2Cidr
      AvailabilityZone: !Select [1, !GetAZs '']
      MapPublicIpOnLaunch: true
      Tags:
        - Key: Name
          Value: Public Subnet 2

  # Private Subnets
  PrivateSubnet1:
    Type: AWS::EC2::Subnet
    Properties:
      VpcId: !Ref VPC
      CidrBlock: !Ref PrivateSubnet1Cidr
      AvailabilityZone: !Select [0, !GetAZs '']
      Tags:
        - Key: Name
          Value: Private Subnet 1

  PrivateSubnet2:
    Type: AWS::EC2::Subnet
    Properties:
      VpcId: !Ref VPC
      CidrBlock: !Ref PrivateSubnet2Cidr
      AvailabilityZone: !Select [1, !GetAZs '']
      Tags:
        - Key: Name
          Value: Private Subnet 2

  # Elastic IPs for NAT Gateways
  NatGateway1EIP:
    Type: AWS::EC2::EIP
    DependsOn: AttachGateway
    Properties:
      Domain: vpc
      Tags:
        - Key: Name
          Value: NAT Gateway 1 EIP

  NatGateway2EIP:
    Type: AWS::EC2::EIP
    DependsOn: AttachGateway
    Properties:
      Domain: vpc
      Tags:
        - Key: Name
          Value: NAT Gateway 2 EIP

  # NAT Gateways
  NatGateway1:
    Type: AWS::EC2::NatGateway
    Properties:
      AllocationId: !GetAtt NatGateway1EIP.AllocationId
      SubnetId: !Ref PublicSubnet1
      Tags:
        - Key: Name
          Value: NAT Gateway 1

  NatGateway2:
    Type: AWS::EC2::NatGateway
    Properties:
      AllocationId: !GetAtt NatGateway2EIP.AllocationId
      SubnetId: !Ref PublicSubnet2
      Tags:
        - Key: Name
          Value: NAT Gateway 2

  # Route Tables
  PublicRouteTable:
    Type: AWS::EC2::RouteTable
    Properties:
      VpcId: !Ref VPC
      Tags:
        - Key: Name
          Value: Public Route Table

  PrivateRouteTable1:
    Type: AWS::EC2::RouteTable
    Properties:
      VpcId: !Ref VPC
      Tags:
        - Key: Name
          Value: Private Route Table 1

  PrivateRouteTable2:
    Type: AWS::EC2::RouteTable
    Properties:
      VpcId: !Ref VPC
      Tags:
        - Key: Name
          Value: Private Route Table 2

  # Public Route
  PublicRoute:
    Type: AWS::EC2::Route
    DependsOn: AttachGateway
    Properties:
      RouteTableId: !Ref PublicRouteTable
      DestinationCidrBlock: 0.0.0.0/0
      GatewayId: !Ref InternetGateway

  # Private Routes to NAT Gateways
  PrivateRoute1:
    Type: AWS::EC2::Route
    Properties:
      RouteTableId: !Ref PrivateRouteTable1
      DestinationCidrBlock: 0.0.0.0/0
      NatGatewayId: !Ref NatGateway1

  PrivateRoute2:
    Type: AWS::EC2::Route
    Properties:
      RouteTableId: !Ref PrivateRouteTable2
      DestinationCidrBlock: 0.0.0.0/0
      NatGatewayId: !Ref NatGateway2

  # Subnet Route Table Associations
  PublicSubnet1RouteTableAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      SubnetId: !Ref PublicSubnet1
      RouteTableId: !Ref PublicRouteTable

  PublicSubnet2RouteTableAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      SubnetId: !Ref PublicSubnet2
      RouteTableId: !Ref PublicRouteTable

  PrivateSubnet1RouteTableAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      SubnetId: !Ref PrivateSubnet1
      RouteTableId: !Ref PrivateRouteTable1

  PrivateSubnet2RouteTableAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      SubnetId: !Ref PrivateSubnet2
      RouteTableId: !Ref PrivateRouteTable2

  # Transit Gateway
  TransitGateway:
    Type: AWS::EC2::TransitGateway
    Properties:
      AmazonSideAsn: 64512
      Description: Transit Gateway for Site-to-Site VPN
      DefaultRouteTableAssociation: enable
      DefaultRouteTablePropagation: enable
      DnsSupport: enable
      VpnEcmpSupport: enable
      Tags:
        - Key: Name
          Value: S2S-TransitGateway

  # Transit Gateway VPC Attachment
  TransitGatewayVpcAttachment:
    Type: AWS::EC2::TransitGatewayVpcAttachment
    Properties:
      TransitGatewayId: !Ref TransitGateway
      VpcId: !Ref VPC
      SubnetIds:
        - !Ref PrivateSubnet1
        - !Ref PrivateSubnet2
      Tags:
        - Key: Name
          Value: VPC-Attachment

  # Customer Gateway for Site-to-Site VPN
  CustomerGateway:
    Type: AWS::EC2::CustomerGateway
    Properties:
      Type: ipsec.1
      BgpAsn: !Ref BgpAsn
      IpAddress: !Ref CustomerGatewayIp
      Tags:
        - Key: Name
          Value: OnPremises-CustomerGateway

  # Site-to-Site VPN Connection
  VpnConnection:
    Type: AWS::EC2::VPNConnection
    Properties:
      Type: ipsec.1
      StaticRoutesOnly: false
      CustomerGatewayId: !Ref CustomerGateway
      TransitGatewayId: !Ref TransitGateway
      Tags:
        - Key: Name
          Value: SiteToSite-VPN

  # Routes in private route tables to Transit Gateway
  # FIXED: Now depends on TransitGatewayVpcAttachment instead of just TransitGateway
  PrivateRouteToTgw1:
    Type: AWS::EC2::Route
    DependsOn: TransitGatewayVpcAttachment
    Properties:
      RouteTableId: !Ref PrivateRouteTable1
      DestinationCidrBlock: !Ref OnPremisesCidr
      TransitGatewayId: !Ref TransitGateway

  PrivateRouteToTgw2:
    Type: AWS::EC2::Route
    DependsOn: TransitGatewayVpcAttachment
    Properties:
      RouteTableId: !Ref PrivateRouteTable2
      DestinationCidrBlock: !Ref OnPremisesCidr
      TransitGatewayId: !Ref TransitGateway

Outputs:
  VpcId:
    Description: VPC ID
    Value: !Ref VPC
    Export:
      Name: !Sub '${AWS::StackName}-VPC-ID'

  TransitGatewayId:
    Description: Transit Gateway ID
    Value: !Ref TransitGateway
    Export:
      Name: !Sub '${AWS::StackName}-TGW-ID'

  VpnConnectionId:
    Description: Site-to-Site VPN Connection ID
    Value: !Ref VpnConnection
    Export:
      Name: !Sub '${AWS::StackName}-VPN-ID'

  CustomerGatewayId:
    Description: Customer Gateway ID
    Value: !Ref CustomerGateway
    Export:
      Name: !Sub '${AWS::StackName}-CGW-ID'

  ConfigurationInstructions:
    Description: Next steps for configuration
    Value: |
      1. Download VPN configuration from Site-to-Site VPN connection
      2. Configure my on-premises router with BGP settings
      3. Test connectivity between networks (192.168.0.0/16 <-> 10.0.0.0/16)
      4. Both NAT Gateways provide redundancy for private subnet internet access

Step 2: Download VPN Configuration #

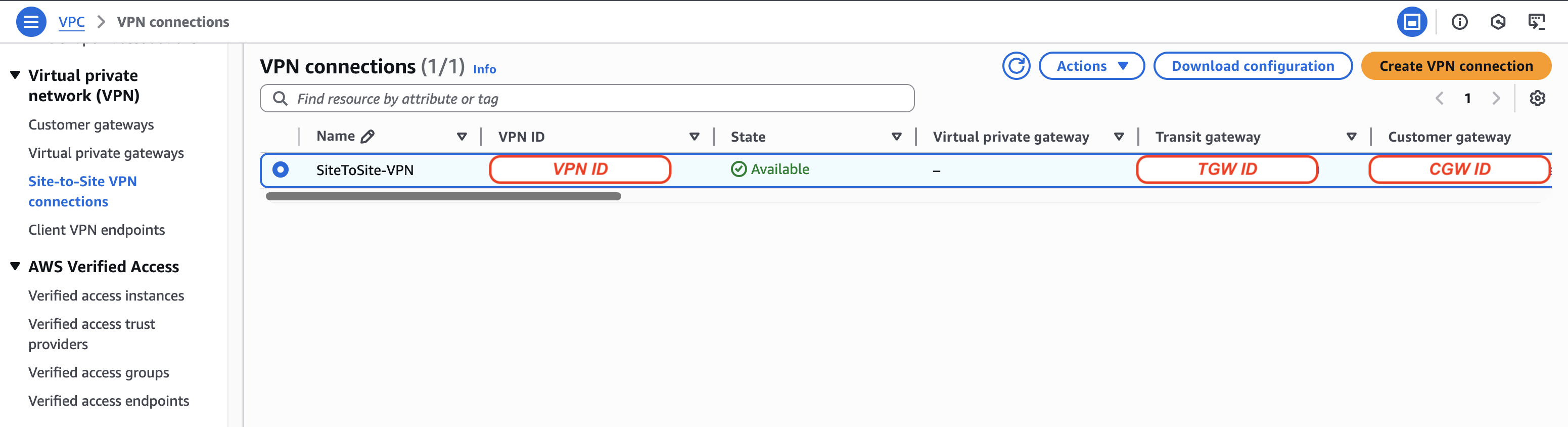

After the CloudFormation stack deploys successfully, navigate to the AWS Console and download the VPN configuration:

Go to VPC → Site-to-Site VPN Connections
Select my VPN connection
Click Download Configuration
Choose Generic as the vendor and download the configuration file

⚠️ Important Note: When you download your VPN configuration, AWS will assign unique tunnel IP addresses for your connection. In this guide and screenshots, I’m using:
Tunnel 1: Customer Gateway 169.254.224.218/30, Virtual Private Gateway 169.254.224.217/30
Tunnel 2: Customer Gateway 169.254.252.34/30, Virtual Private Gateway 169.254.252.33/30
Make sure to use the actual tunnel IP addresses from YOUR downloaded configuration file, not the ones shown in my examples.

Step 3: Configure UniFi Cloud Gateway Max #

Now that the AWS infrastructure is deployed and you have the VPN configuration file, it’s time to configure the UniFi side.

Create Site-to-Site VPN in UniFi Console #

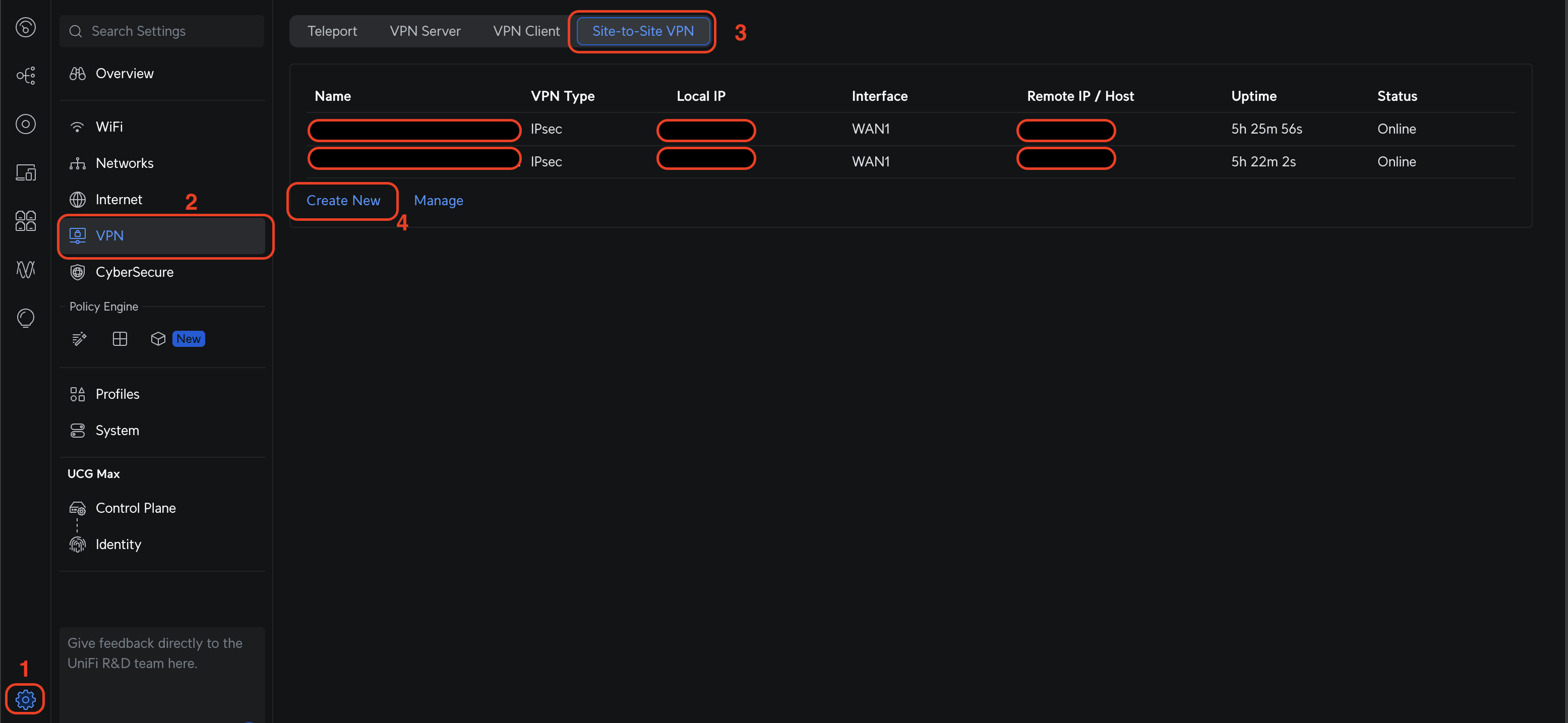

Access UniFi Console and navigate to Settings → VPN
Create new Site-to-Site VPN connection:

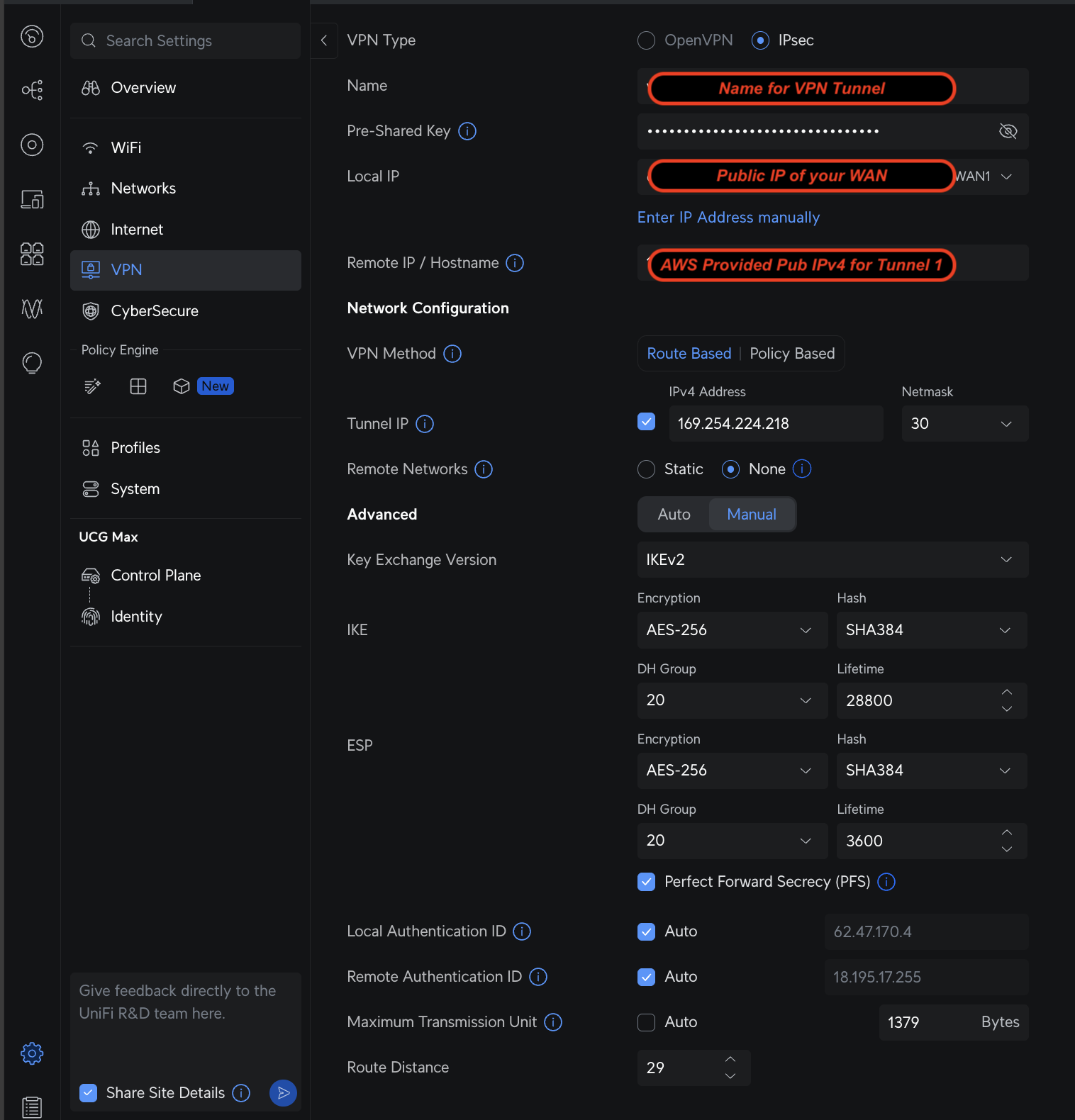

Configure VPN parameters using the details from my downloaded AWS VPN configuration:

Key configuration points:

VPN Type: IPSec
Name: Use AWS VPN connection ID (e.g., vpn-xxxxxxxxx-xxx-Tun-1)
Pre-shared Key: From the AWS VPN configuration file
Local IP: My public IP (e.g., x.x.x.x)
Remote IP/Hostname: AWS tunnel endpoint (e.g., x.x.x.x)
VPN Method: Route Based
Tunnel IP: Customer Gateway tunnel IP (e.g., 169.254.224.218/30)
Key Exchange Version: IKEv2
IKE Encryption: AES-256
IKE Hash: SHA384
IKE DH Group: 20
IKE Lifetime: 28800
ESP Encryption: AES-256
ESP Hash: SHA384
ESP DH Group: 20
ESP Lifetime: 3600
Local Authentication ID: My public IP
Remote Authentication ID: AWS tunnel endpoint IP
MTU: 1379 bytes
Route Distance: 29

Configure BGP Dynamic Routing #

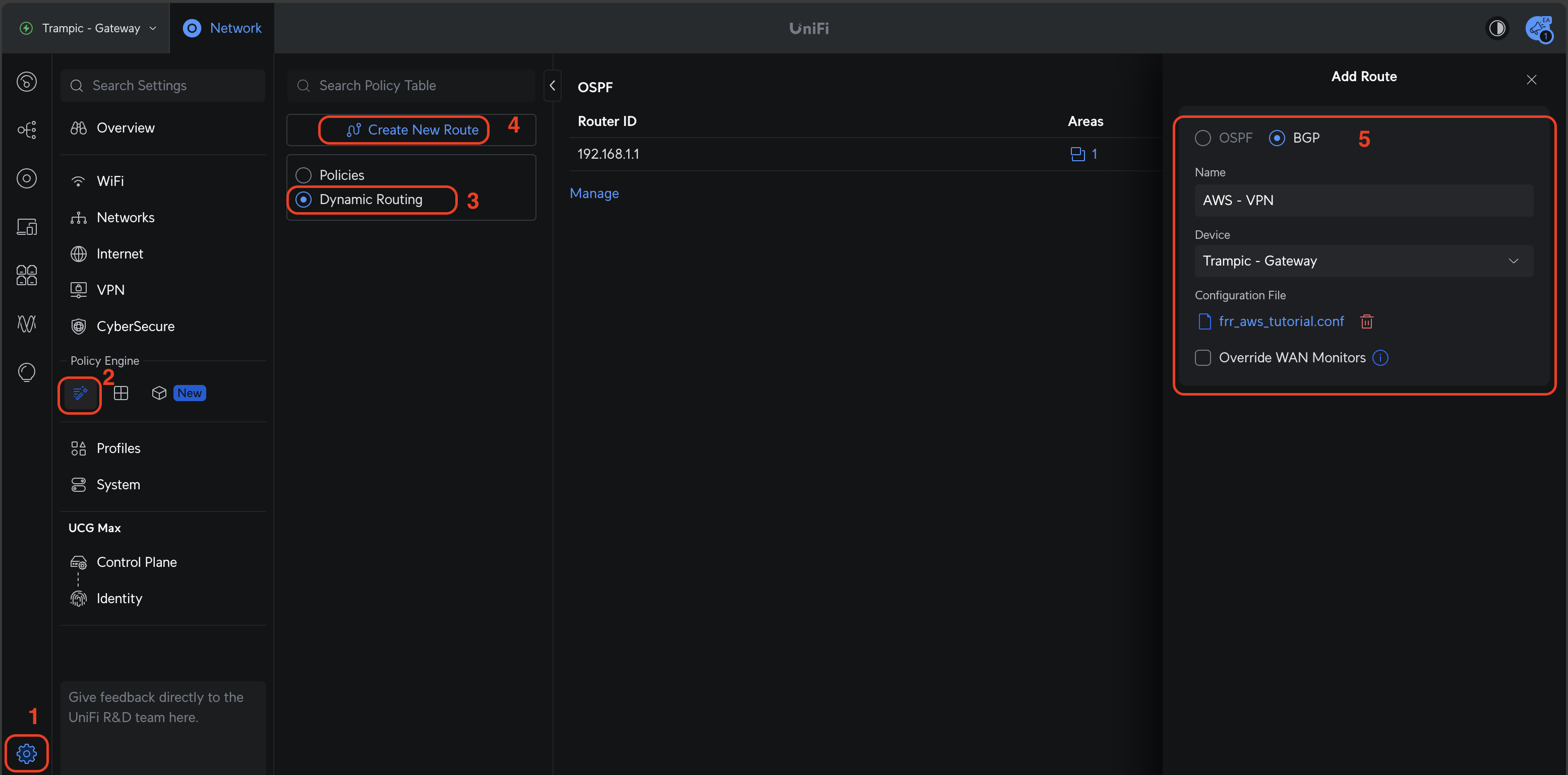

After creating the VPN connection, I need to configure BGP for dynamic routing between my home lab and AWS.

Create BGP configuration using the following FRR configuration:

📝 Note: Save this configuration to a file (e.g., frr_aws_tutorial.conf) as we’ll upload it to the UniFi Console in the next step.

frr defaults datacenter
!
router bgp 65000
 bgp router-id 192.168.1.1

 ! --- AWS TUNNEL 1 (PRIMARY) ---
 neighbor 169.254.224.217 remote-as 64512
 neighbor 169.254.224.217 description AWS-Tunnel1-PRIMARY
 neighbor 169.254.224.217 timers 10 30

 ! --- AWS TUNNEL 2 (BACKUP) ---
 neighbor 169.254.252.33 remote-as 64512
 neighbor 169.254.252.33 description AWS-Tunnel2-BACKUP
 neighbor 169.254.252.33 timers 10 30

 address-family ipv4
  ! Advertise on-prem network(s) to AWS
  network 192.168.1.0 mask 255.255.255.0

  ! PRIMARY neighbor policy
  neighbor 169.254.224.217 activate
  neighbor 169.254.224.217 soft-reconfiguration inbound
  neighbor 169.254.224.217 route-map IN-PRIMARY in
  neighbor 169.254.224.217 route-map OUT-PRIMARY out

  ! BACKUP neighbor policy
  neighbor 169.254.252.33 activate
  neighbor 169.254.252.33 soft-reconfiguration inbound
  neighbor 169.254.252.33 route-map IN-BACKUP in
  neighbor 169.254.252.33 route-map OUT-BACKUP out
 exit-address-family
!
! ---- Place route-maps (and any prefix-lists) *after* router bgp on UniFi ----
!
! Inbound from AWS — prefer PRIMARY via higher local-pref
route-map IN-PRIMARY permit 10
 set local-preference 200
!
route-map IN-BACKUP permit 10
 ! default local-pref = 100
!
! Outbound to AWS — no change on PRIMARY
route-map OUT-PRIMARY permit 10
!
! Outbound to AWS — prepend on BACKUP so AWS prefers PRIMARY towards you
route-map OUT-BACKUP permit 10
 set as-path prepend 65000 65000
!

Navigate to Dynamic Routing in the UniFi Console:

This configuration:

Sets up BGP peering with both AWS tunnel endpoints
Configures tunnel 1 as primary and tunnel 2 as backup
Advertises my home network (192.168.1.0/24) to AWS
Uses route-maps to prefer the primary tunnel for traffic in both directions

Validation #

Once the BGP configuration is complete, you can validate that routing is working correctly in the AWS Console. Navigate to VPC → Transit Gateways → Route Tables to see the learned routes from your home lab:

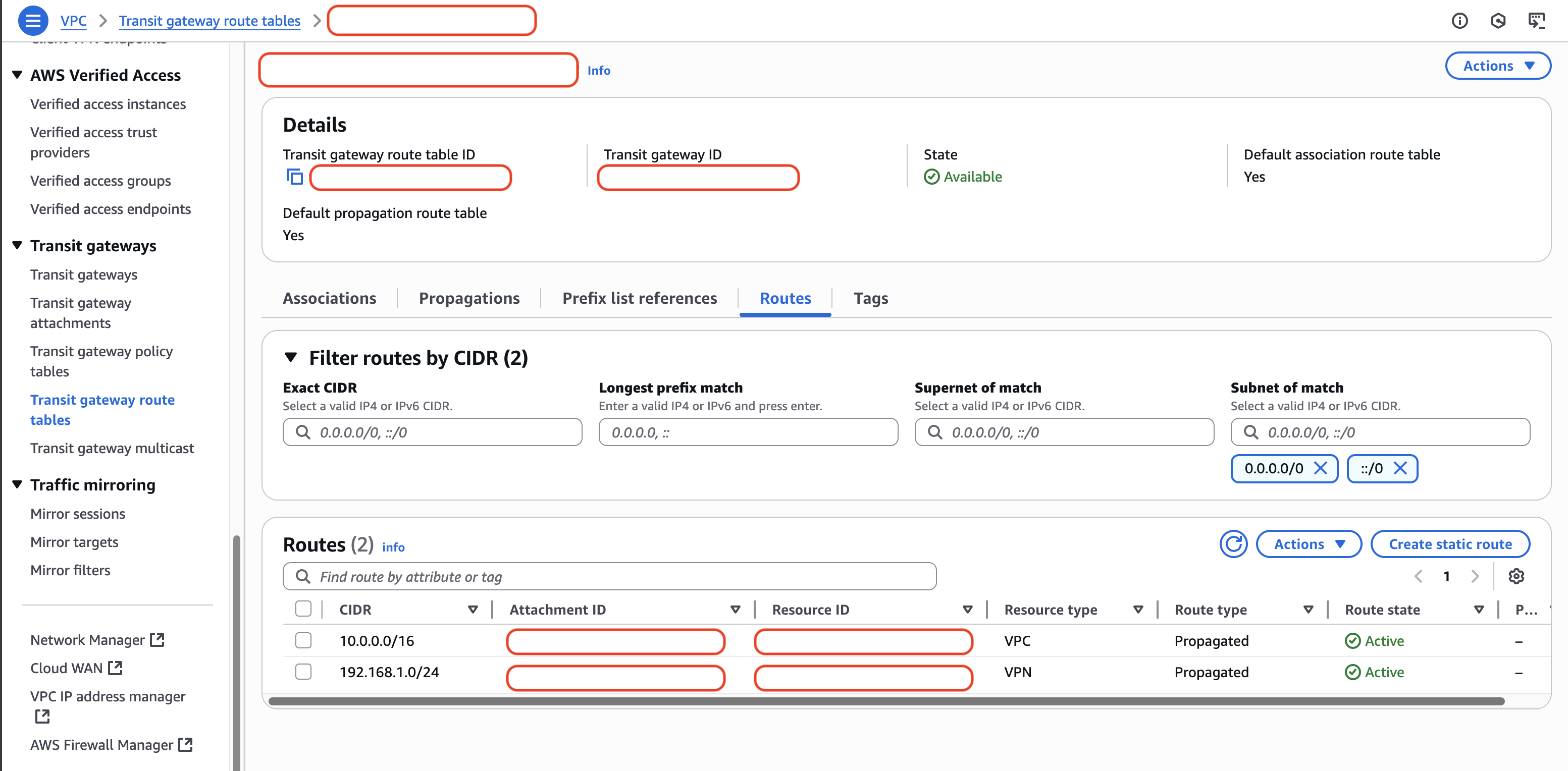

Transit Gateway Route Table showing BGP learned routes

You should see your home lab network (192.168.1.0/24) appearing as a propagated route with the VPN attachment as the target. This confirms that BGP is successfully advertising your on-premises network to AWS.

Troubleshooting #

Common issues and solutions when establishing BGP peering between UniFi and AWS:

Check VPN Tunnel Status #

First, verify that the IPSec tunnels are established:

# SSH to UniFi Gateway and test connectivity to AWS tunnel endpoints
ping 169.254.224.217
ping 169.254.252.33

BGP Status and Debugging #

Check BGP neighbor status and route exchange:

# Access FRR shell on UniFi Gateway
vtysh

# The following commands should be executed within vtysh session
# or as single commands: vtysh -c "command"

# Check BGP summary - shows neighbor status and route counts
show ip bgp summary

# Check specific neighbor details
show ip bgp neighbors 169.254.224.217

# View routes being advertised to AWS
show ip bgp neighbors 169.254.224.217 advertised-routes

# View routes received from AWS
show ip bgp neighbors 169.254.224.217 received-routes

# Check BGP routing table
show ip bgp

# Check if specific route is in BGP table
show ip bgp 192.168.1.0/24

Route Advertisement Issues #

If routes aren’t being advertised or received:

# Execute within vtysh session or as vtysh -c "command"

# Check if BGP neighbor is activated
show running-config
# Look for "neighbor X.X.X.X activate" under address-family ipv4

# Clear BGP session to refresh routes
clear ip bgp 169.254.224.217 soft out

# Check local routing table
show ip route

# Verify route-maps are applied correctly
show route-map ALLOW-ALL

Common Configuration Issues #

BGP neighbor not activated: Ensure neighbor X.X.X.X activate is configured under address-family ipv4
Routes not advertised: Check if you have either:
- network 192.168.1.0/24 statement, or
- redistribute connected with appropriate route-maps
Routes received but not installed: Usually indicates:
- Better route exists in routing table
- Next-hop not reachable
- Inbound route-map blocking routes
No BGP instance found: BGP configuration not loaded properly - restart FRR or check integrated config

AWS Side Verification #

Check AWS console for:

VPN connection status (both tunnels should show “UP”)
Route propagation enabled on route tables
Security groups allowing traffic from on-premises CIDR
Transit Gateway route tables have proper associations and propagations

Service Status Commands #

# Check FRR service status
systemctl status frr

# View FRR logs
journalctl -u frr -f

# Restart FRR if needed
systemctl restart frr

Conclusion #

This setup provides several key benefits for hybrid cloud connectivity:

Dynamic Routing: BGP automatically handles route updates, eliminating the need for manual static route management when networks change.

High Availability: With dual tunnels and route-maps, traffic automatically fails over to the backup tunnel if the primary fails, ensuring continuous connectivity.

Scalability: The Transit Gateway architecture allows easy addition of more VPCs, VPN connections, or Direct Connect gateways as your infrastructure grows.

Cost Efficiency: Using your existing UniFi Gateway Max eliminates the need for additional hardware while providing enterprise-grade VPN capabilities.

With this configuration, my home lab now has seamless, resilient connectivity to AWS with automatic failover and dynamic routing - perfect for hybrid cloud workloads, development environments, and secure access to cloud resources.

This post was co-authored with Amazon Q Developer, combining human expertise with AI assistance for technical accuracy and comprehensive coverage.
